Adam Weighing Scale Display Icons

Display of Eclipse Balance

You probably noticed the display on your balance or scale's indicator shows various symbols at a given time. Whether you don't have a manual to flip through, or just want a quick refresher course, this page explains some of the symbols you may see displayed on a scale or balance, and their meaning.

All balances and scales have different icons and text on their display. Sometimes it's specific to the model of the instrument, and other times it's for specific features or applications. Many balances have multilingual displays. Icons or symbols are used on all balances regardless of the manufacturer, but for the sake of this post, we are only discussing symbols found on Adam products. Some icons are specific to Adam, while others are part of an international standard for symbols. Approved scales display symbols that are required by law for legal trade usage. This is not a complete list of Adam Equipment's icons and symbols (that would be many, many pages), only the most common.

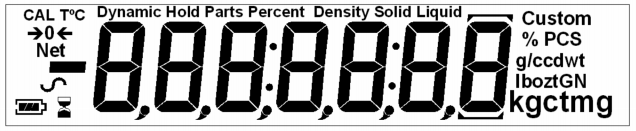

Example of Scale Display

Weighing Modes

Percent or %
Percent Weighing. The balance is in percentage weighing mode or the reading is shown as a percentage. It is also used with moisture analysis with a %S or %M, meaning percentage solids or percent moisture.
Parts or PC or pcs
Piece Counting. The balance is counting pieces or showing the number of PCS on the display.
Hold
Hold is displayed when the balance is holding the weight value. Often used for peak hold or animal / dynamic weighing. This signifies that the displayed reading will not change if weight is taken away from the balance or scale
Density Solid
When the balance is in the Solid Density mode
DS
Density Measurement
Net
When a net weight is shown
Animal Weighing Icon or Dynamic
When the balance is in the animal/dynamic weighing mode
Memory Icon
When a value has been entered into the memory
Tare Icon
Tare symbol. The balance is at zero because the weight on it was tared.
)) ) )
Ultrasonic sensor symbol. The MUW's sensor is on and measuring the patient

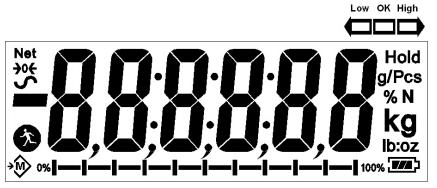

Example of Scale Display

Checkweighing and Checkcounting

Checkweighing Lights
Used for checkweighing to show if the item being checked is low, ok or high. Can be used when check counting as well.
HI
(red) Mass on the platform is above the high limit
OK
(green) Mass is between the limits
LO
(amber) Mass is below the low limit)
Internal Memory Icon
Indicates that the internal memory has a record of previous weight readings stored in it.
Samples Icon
The number of samples to accurately determine the count is insufficient.
Preset Count Icon
Indicates that a preset count has been stored.
Unit Weight Icon or Unit Weight Icon
The unit weight is not large enough to determine an accurate count.

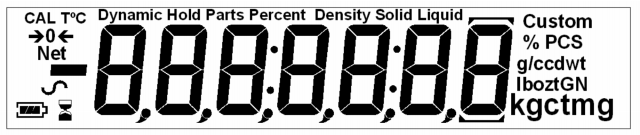

Example of Scale Display

General Display

* or Stability Icon or Stability Icon or STABLE
Indicates the balance is stable.
Zero Icon or Zero Icon or -0-
Exact Zero Indicator; the scale or balance is reading zero. Sometimes this symbol is used on the keypad to allow the user to zero the balance or scale.
Battery Icon / bAt LO / LO bat / / Battery Icon / Battery Icon
Battery Indicator. Displays how much battery life the balance has left. If the icon flashes, battery is low
Data Insertion Icon
Data Insertion
H
Upper Threshold
Busy Icon
Busy. The balance is currently processing or calculating results, so it cannot be used right now
Capacity Tracking Icon followed by (-) (weight under value or OK (weight is inside value) (+)(weight over value) or Capacity Tracking Icon / Capacity Tracking Icon
The Capacity Indicator Bar shows the user how much weighing range they have left before they might over load the balance or scale.
:
Separate pounds from ounces.
diSPEr
The weight exceeds the 6 digits the display can show.
PIn
requesting the password number.

Some scales, like the CBD, can display letters of the alphabet for product descriptions.

Example of Scale Displaying Letters

Calibration

CALIBRA
Enter Calibration Mode
CAL
Calibration Mode is ON, calibration is happening or about to occur.
CAL OFF
Calibration Mode Ended
L0Ad
Put weight on the balance during calibration mode. The number after load is the mass of the calibration weight you should put on the balance during calibration.
unL0Ad
Remove weight from balance during calibration mode.
T
For a time driven calibration. Some balances with internal calibration can be programmed to self calibrate automatically at certain time intervals.
ºC
a Celsius icons is shown or a temperature driven calibration is to occur
SPAn, PASS
Calibration is done
SPAn, FAIL
Error: calibration failed

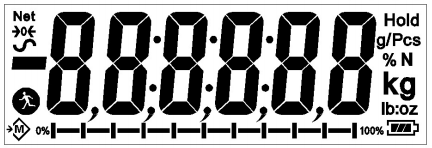

Example of Scale Display

Units

For a more detailed description of weighing units please see our Units of Measurement page.

GRAMS
g
MILLIGRAMS
mg
KILOGRAMS
kg
CARATS
ct
PENNYWEIGHTS
dwt
GRAINS
GN
TROY OUNCES
ozt
OUNCES
oz
POUNDS
lb
DRAMS
dr
HK TAELS
tl H
TAIWAN TAELS
tl T
SING TAELS
tl S
MOMMES
mm
TOLAS
T
TICAL
ti
NEWTONS
N
CUSTOM
Customer
NUMBER OF PIECES
PCS

Feel free to contact us with any question you might have. Don't forget that manuals are available on our website. Just go to the product page and scroll down. There are several PDFs in various languages you can click on and read. You can also watch our product videos.
